HILOOK THC-B140-P 4MP
Product Description

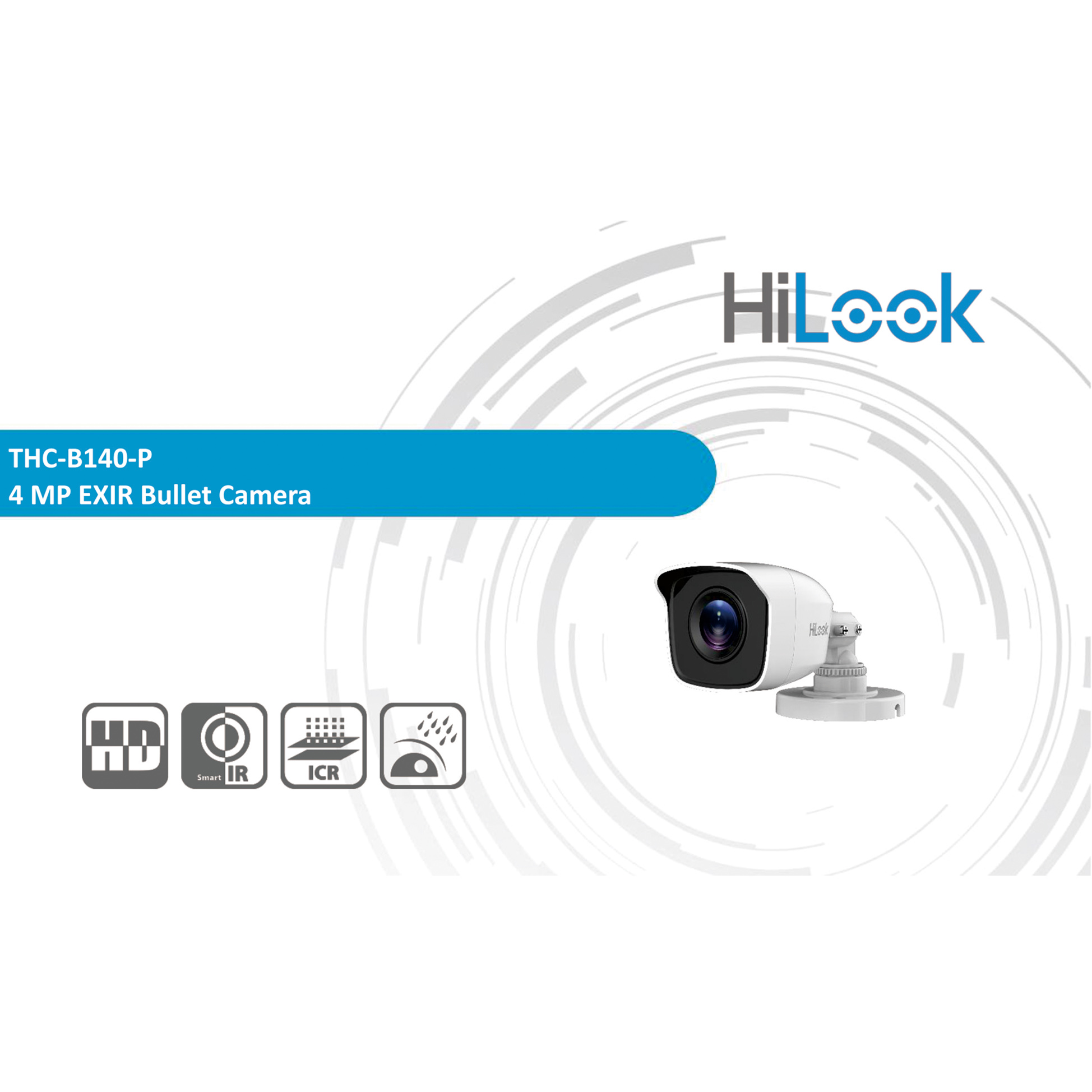

4 MP Fixed Mini Bullet Camera
- 4 MP bullet camera
- Smart IR: up to 20 m IR distance
- Water and dust resistant (IP66)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
- Camera
- Lens2.8 mm, 3.6 mm, 6 mm
- Horizontal Field Of View100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm)
- Lens MountM12
- Day & NightIR cut filter
- SynchronizationInternal synchronization
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
- Image Sensor4 MP CMOS image sensor
- Frame RatePAL: 1080p@25fps, 4 MP@25fps NTSC: 1080p@30fps, 4 MP@30fps
- Resolution2560 (H) × 1440 (V)
- Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time1/25 (1/30) s to 1/50,000 s
- Menu
- AGCHigh/Medium/Low/Off
- Day/Night ModeAuto/Color/BW (Black and White)
- Backlight CompensationSupport
- DWDR (Digital Wide Dynamic Range)Support
- LanguageEnglish
- FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
- Interface
- Video Output1 HD analog output
- Switch ButtonTVI/AHD/CVI/CVBS
- General
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Power Supply12 VDC ± 15%
- Power ConsumptionMax. 4 W
- Protection LevelIP66
- MaterialPlastic
- IR RangeUp to 20 m
- Dimensions165 mm × 62 mm × 58 mm ( 6.50″ × 2.44″ ×2.28″)
- Weight150 g (0.33 lb.)
